Sand Casting Grey Cast Iron Casting Solid Tooth Cast Flywheel Diesel Engine Parts
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Flywheel | Material: | Grey Iron |
|---|---|---|---|
| Application: | Auto Part | Manufacturing Process: | Sand Casting |
| Surface Treatment: | Dacromat Coating, Finish Painting Etc. Or As Customers Request | Dimensions: | As Per Drawing |
| Highlight: | gray iron casting process,green sand casting |
||

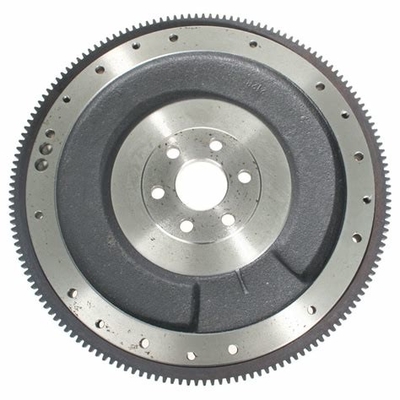

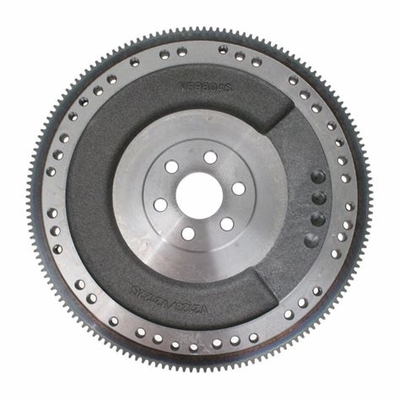

Sand Casting Grey Cast Iron Casting Solid Tooth Cast Flywheel Diesel Engine Parts
Application
Flywheel is a kind of accumulator with wheel shapes, which is installed on the rotating shafts of machines. It relies on a large rotational inertia to maintain the smooth rotation of engines.
Material: Flywheels are usually made by grey iron ASTM A48 CLASS30 and CLASS35, and ductile iron ASTM A536 65-45-12, 70-50-05 and 80-60-03.
Feature
Grey iron flywheels have good castability and wearing resistance, moreover, grey iron cost is cheaper than ductile iron.
Production Process
We usually produce flywheel castings by automatic molding line to meet the high demand and technical requirements. Most of flywheel castings do not need sand cores, so most of iron foundries could produce them by high production rate.
Product Details
| Process | Sand casting(Resin sand) |
| Specification |
1. Material: grey iron, ductile iron. 2. Standard: ASTM DIN BS JIS GB. 3. Surface finish: shot blasting,sand blasting,painting, etc. 4. Weight: about 1-50kg.
|
| Production facility |
1. Casting facility: Electric furnace, heat treatment furnace,sand mixer, moulding machine, shot-blasting machine. 2. Machining facility: CNC, NC lathe, ordinary machine tools. |
| Heat treatment | Annealing / Normalizing / Quenching / Tempering. |
| Test facility | spectrometer, tensile test machine, hardness test machine, metallographic |
We are specializing in the casting industry, our major product include flywheel, flywheel housing, exhaust pipe, oil pump, gear housing, water pump body, belt pulley, bracket etc
Grey Iron Casting Material Comparison Table:
|
Cast iron with lamellar graphite DIN EN 1561 |
Germany DIN 1691 |
France NF |
Great Britain BS |
Netherlands NEN |
Sweden MNC |
USA ASTM A48 |
| EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B |
| EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B |
| EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B |
| EN-GJL-300 | GG 30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B |
Our Service
1. We can manufacture kinds of products according to clients' samples and drawings.
2. Quality and cheap, according to customer requirements into production.
3. High quality truck flywheel and ring gear.
4. Positive customer feedback from abroad and domestic market.
5. Sample purpose order accepted.
6. Packing according to specification required.
2. Quality and cheap, according to customer requirements into production.
3. High quality truck flywheel and ring gear.
4. Positive customer feedback from abroad and domestic market.
5. Sample purpose order accepted.
6. Packing according to specification required.
FAQ
Q: Do you have any MOQ limit?
A: Our MOQ EXW is 15-30 pcs;
A: Our MOQ EXW is 15-30 pcs;
Q: what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx. It usually takes 3-5 days to arrive.
A: We usually ship samples by DHL, UPS, FedEx. It usually takes 3-5 days to arrive.
Q: What is your acceptable payment terms?
A: Our usually payment term is T/T, L/C. Others can be negotiated.
A: Our usually payment term is T/T, L/C. Others can be negotiated.
Q: How to process the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If sample is OK, finally we will go to mass production.
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. If sample is OK, finally we will go to mass production.
